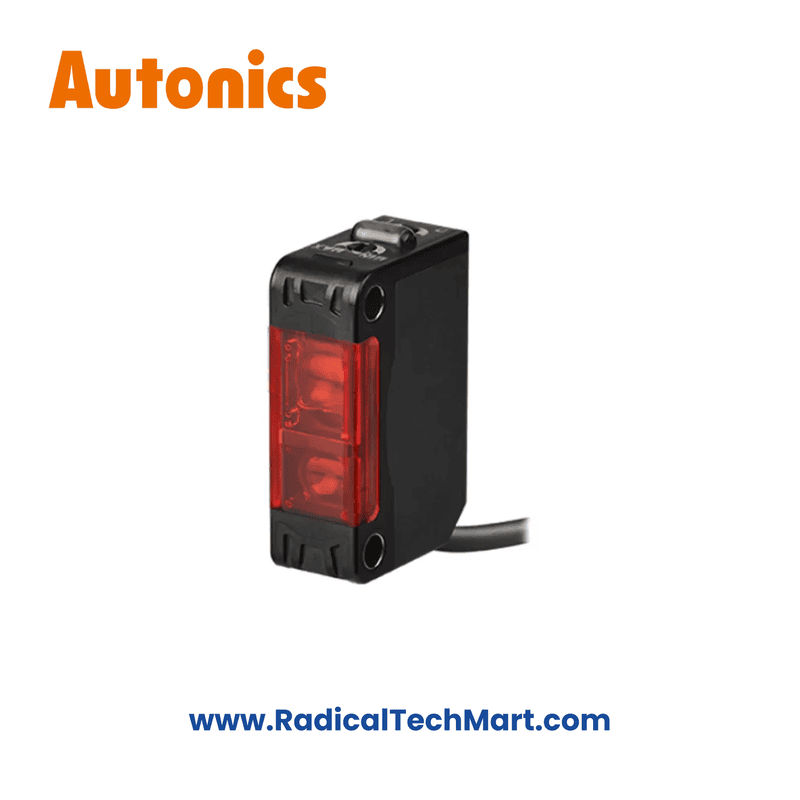

BJP100-BDT-P Autonics Photoelectric Sensor
Non-returnable
₹4,829.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BJP100-BDT-P |
| Sensing Type | BGS reflective type |
| Sensing Distance | 10 to 100mm |
| Sensing Target | Opaque |
| Response time | Max. 1.5ms |
| Power Supply | 12-24VAC ± 10% , Ripple P – P : Max.10% |
| Current Consumption | Max. 30mA |
| Light Source | Red LED(660nm) |
| Operation Mode | Light ON/Dark ON Selectable |
| Sensitivity adjustment | Short Rotator adjuster |
| Indicator | Operation: Red, Stable: Green ( Emitter of power indicator for Transmitted beam : Red) |
| Connection type | Cable type(Ø3.5, 2m) |
| Vibration | 1.5mm or 300mm amplitude at frequency of 10∼55Hz in each of X, Y, Z directions for 2 hours |
| Control output | PNP open collector |
| Ambient Temperature | -25 ∼ 55°C , Storage:- -25 to +70°C ( at non-freezing status ) |
| Ambient Humidity | 35 to 85% RH |
| Material | Case: polycarbonate+acrylonitrile butadiene styrene, LED indicator: polycarbonate, sensing part: polymethyl methacrylate |
| Protection | IP65 |
| Accessories | Adjustment screwdriver, bracket A, M3 bolts: 2, M3 nuts: 2 |
| Weight | Approx. 105g |
